trackmaps

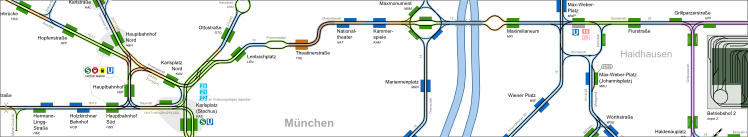

  • Current tram trackmap

    Complete track network of the MVG in Munich and Grünwald.

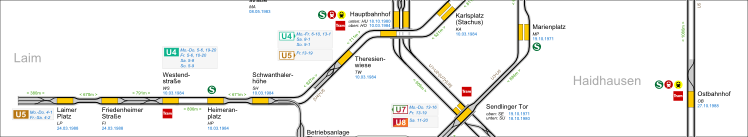

  • Current subway trackmap

    Complete track network of the MVG in Munich and Garching.

  • share

  • Copyright

    These drawings are protected by copyright. A further use is possible by application of the Creative-Commons-Lizenz by-nc-sa.

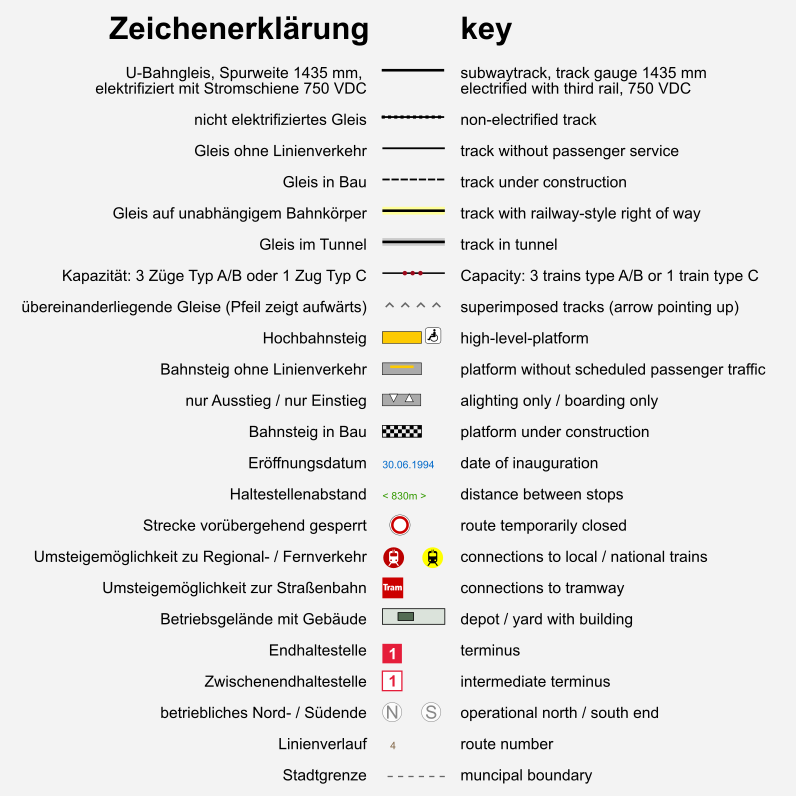

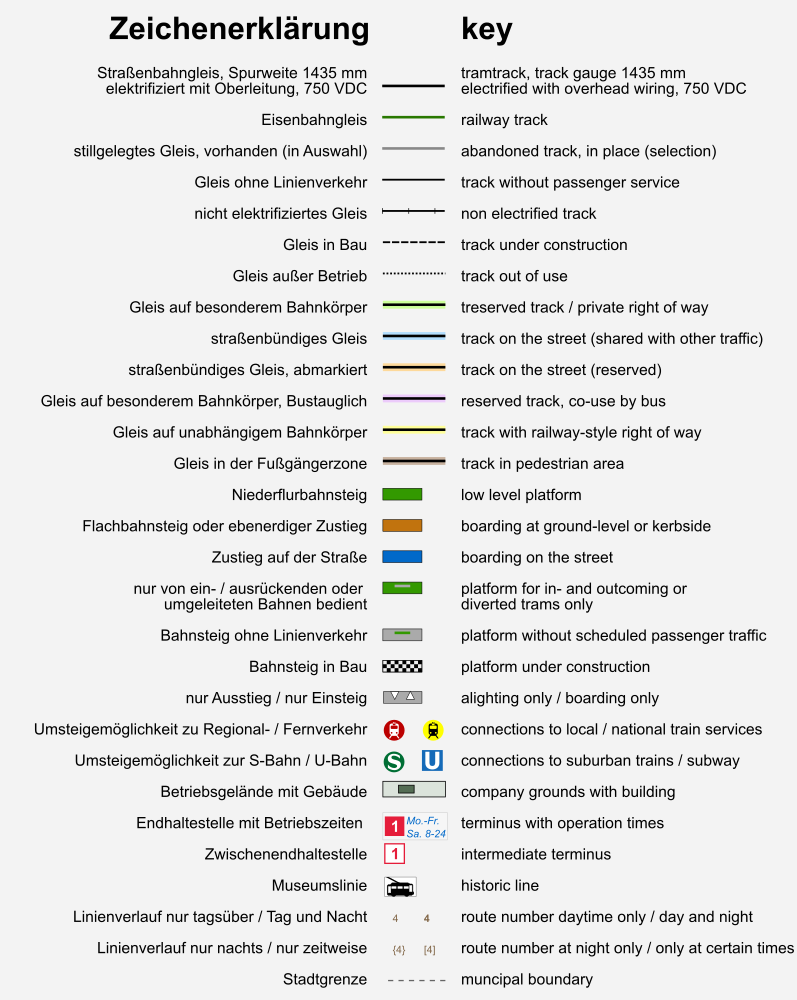

  • Ausführliche Definitionen der im Gleisplan verwendeten Symbole und Darstellungen.
  • additional maps

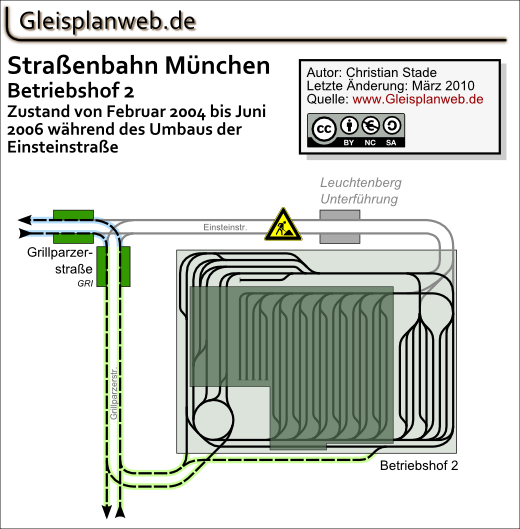

  • depot 2

    Situation from February 2004 till June 2006 during the reconstruction of the Einsteinstraße.
    trackmap

    Historical overview

    Development of the tramway network from 1955 till today. (german only)
    to the page

  • current and upcoming projects

      Short-time construction works with no effect on the trackmap are not listed here.

    • Ludwigsbrücke [Straßenbahn]

      Brückensanierung.
      in Bau | proposed inauguration: Frühjahr 2025
      drawn on the trackmap

    • Tram Johanneskirchen [Straßenbahn]

      Neubaustrecke ab Regina-Ullmann-Straße zum S-Bahnhof Johanneskirchen.
      Planfeststellungsverfahren Baubeginn: 2025 | proposed inauguration: Februar 2027
      drawn on the trackmap | website

    • Betriebshof Süd [U-Bahn]

      Neuer Betriebshof in Neuperlach.
      Entwurfsplanung | proposed inauguration: in Etappen ab 2026
      drawn on the trackmap | website

    • Maxmonument [Straßenbahn]

      Neue Haltestelle für die Linie 16 nördlich des Kreisels
      geplant | proposed inauguration: 2025
      drawn on the trackmap

    • Tram Münchner Norden [Straßenbahn]

      Neubaustrecke ab Schwabing Nord mit zwei Streckenästen nach Kieferngarten und am Hart.
      drawn on the trackmap | website

      • Abschnitt 1: Schwabing Nord – Kieferngarten
        Planfeststellungsbeschluss Baubeginn: 2025 | proposed inauguration: 2030

      • Abschnitt 2: Neubaustrecke ab Schwabing Nord mit zwei Streckenästen nach Kieferngarten und am Hart.
        Vorplanung | proposed inauguration: 2031

    • Westtangente [Straßenbahn]

      Neubaustrecke vom Romanplatz über Laim bis zur Aidenbachstraße
      drawn on the trackmap | website

      • Romanplatz: Gleisdreieck am nördlichen Ende der Westtangente
        fertiggestellt | inauguration: 09.06.2024

      • Kreuzung Ammerseestraße: Abzweige an der Nordseite der Kreuzung
        fertiggestellt Baubeginn: März 2024 | inauguration: 06.10.2024

      • Kreuzung Agnes-Bernauer-Straße: Bau der kompletten Kreuzung
        Planfeststellungsbeschluss Baubeginn: Juni 2025 | proposed inauguration: August 2025

      • Kreuzung Ammerssestraße: Abzweige an der Südseite der Kreuzung
        Planfeststellungsbeschluss | proposed inauguration: 2027

      • Abschnitt 1: Romanplatz – Agnes-Bernauer-Straße
        Planfeststellungsbeschluss | proposed inauguration: Ende 2028

      • Abschnitt 2: Agnes-Bernauer-Straße – Ammerseestraße
        in Bau | proposed inauguration: Ende 2025

      • Abschnitt 3: Ammerseestraße – Ratzingerplatz
        Planfeststellungsbeschluss | proposed inauguration: Ende 2027

      • Abschnitt 4: Ratzingerplatz – Aidenbachstraße
        Planfeststellungsbeschluss | proposed inauguration: Ende 2028

    • Betriebshof Ständlerstraße [Straßenbahn]

      kompletter Neubau der Hauptwerkstatt und Ergänzung um Betriebswerkstatt und Abstellanlage.
      drawn on the trackmap

      • Abstellanlage Teil 1:
        Planfeststellungsverfahren Baubeginn: Herbst 2025 | proposed inauguration: Mitte 2027

      • Abstellanlage Teil 2:
        Planfeststellungsverfahren | proposed inauguration: noch offen

      • Betriebswerkstatt:
        Planfeststellungsverfahren | proposed inauguration: noch offen

      • Zulaufstrecke: Neue Zufahrt ab der Haltestelle Schwanseestraße durch die Ständlerstraße. Die bisherige Zufahrt entfällt.
        Entwurfsplanung | proposed inauguration: noch offen

      • Hauptwerkstatt:
        Planfeststellungsverfahren | proposed inauguration: noch offen

    • Gondrellplatz [Straßenbahn]

      Wiederaufbau des zweiten Schleifengleises.
      geplant | proposed inauguration: Ende 2025

    • U9 [U-Bahn]

      Neubaustrecke von der Münchner Freiheit über Hauptbahnhof zur Implerstraße
      Vorplanung Baubeginn frühestens 2026 | proposed inauguration: frühestens 2035
      drawn on the trackmap | website

    • Nordtangente [Straßenbahn]

      Neubaustrecken zwischen Elisabethplatz, Tivolistraße und Münchner Freiheit.
      drawn on the trackmap | website

      • PFA 1: Neubaustrecke vom Elisabethplatz über Giselaplatz zur Münchner Freiheit.
        Planung gestoppt | proposed inauguration:

      • PFA 2: Neubaustrecke vom Giselaplatz durch den englischen Garten zur Tivolistraße.
        verworfen | proposed inauguration:

    • Martinsried [U-Bahn]

      Streckenverlängerung vom Klinikum Großhadern nach Martinsried.
      in Bau Baubeginn: Februar 2023 | proposed inauguration: 2027
      drawn on the trackmap

    • U5 West [U-Bahn]

      Verlängerung der U5 vom Laimer Platz bis Bahnhof Pasing mit den Zwischenhaltestellen Willibaldstraße und Am Knie,
      in Bau Baubeginn: Januar 2022 | proposed inauguration: ca. 2031
      drawn on the trackmap

    network data tramway
    inauguration:
    21.10.1876
    track gauge:
    1435 mm
    overhead wiring:
    750 VDC
    operator:
    Münchner Verkehrsgesellschaft
    network, total length:
    82 km
    lines:
    13
    rolling stock tramway (2021)
    trams:
    126
    Max. of trains needed:
    100
    historic trams:
    >20
    network data subway
    inauguration:
    19.10.1971
    track gauge:
    1435 mm
    third rail:
    750 VDC
    operator:
    Münchner Verkehrsgesellschaft
    network, total length:
    103,1 km
    lines:
    8
    rolling stock subway (2021)
    subway trains:
    536
    Max. of trains needed:
    536
    partly estimated
    • 09.01.2025
      Line 12 extended to Schwabing, night operation at the subway.
    • 19.11.2024
      Tram: Detailled plan for the new line Münchner Norden added.
    • 11.11.2023
      Tram: New stop Carl-Amery-Platz inaugurated.
    • 21.10.2023
      Tram: Plans for the proposed Nordtangente updatet.
    • 19.02.2023
      Tram: New stop Carl-Amery-Platz under construction.
    • 14.02.2023
      Metro: :Line extension to Martinsried under construction.
