  • Current tram network

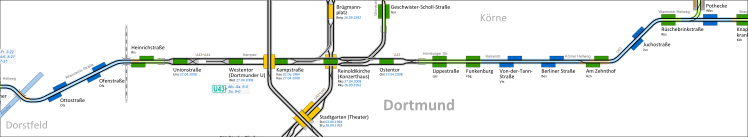

    Complete trackmap of the DSW21 and the H-Bahn.

    show trackmap trackmap as pdf trackmap as svg key

  • share

  • Copyright

    These drawings are protected by copyright. A further use is possible by application of the Creative-Commons-Lizenz by-nc-sa.

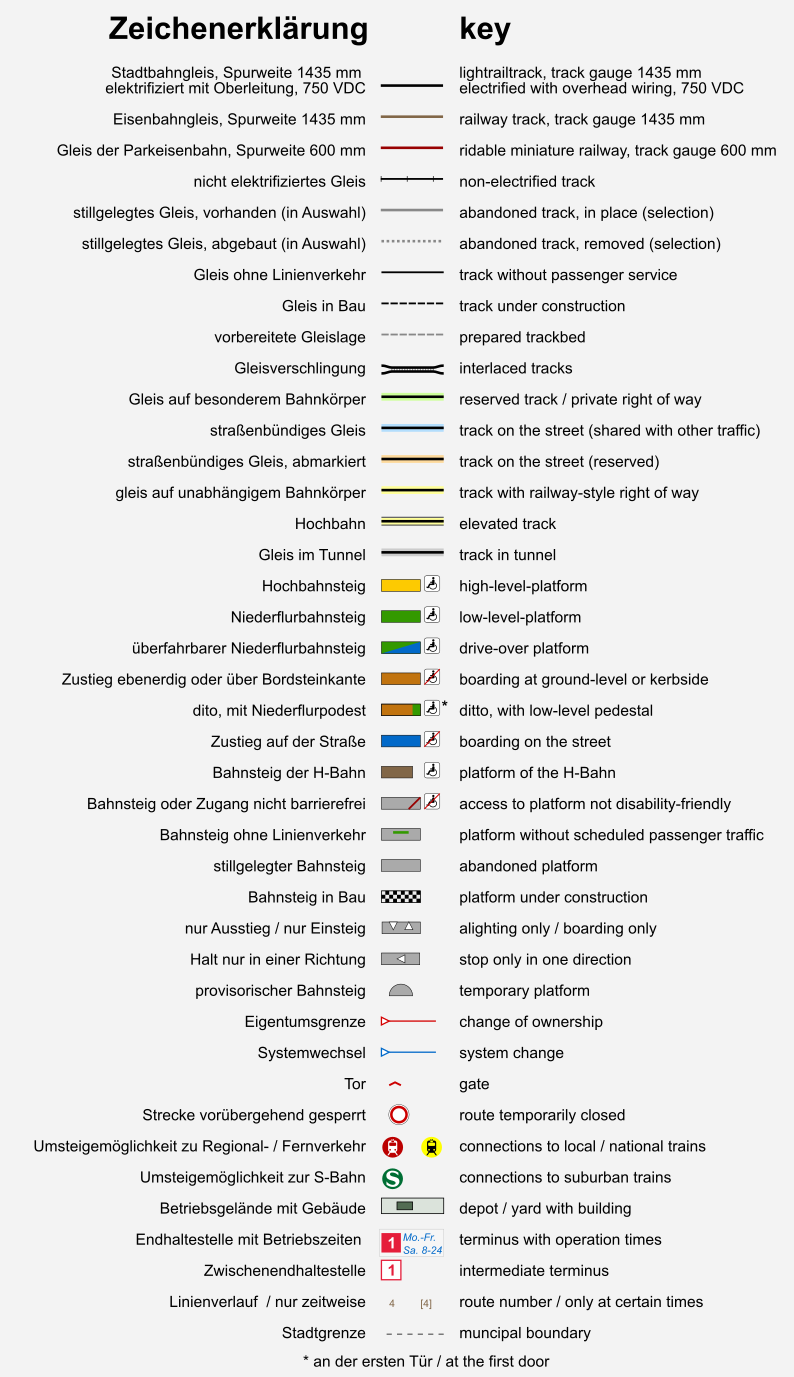

  • Ausführliche Definitionen der im Gleisplan verwendeten Symbole und Darstellungen.

    • additional maps

  • City centre

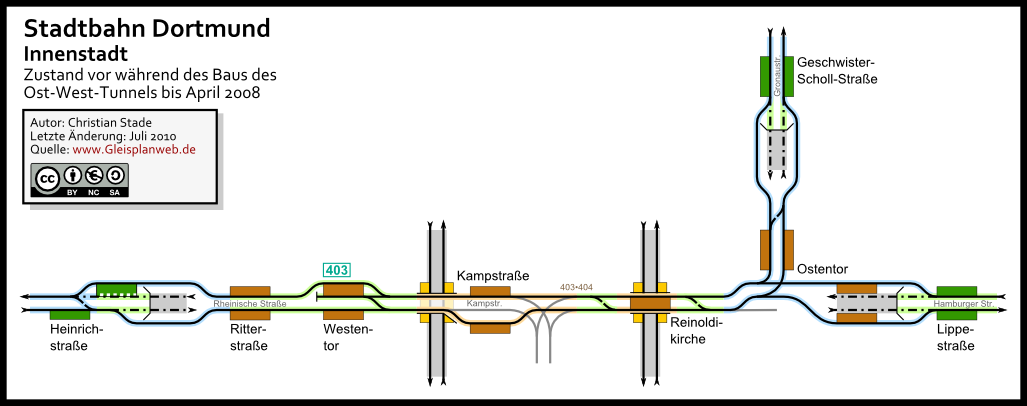

    Situation during the construction of the tunnel until April 2008.
    trackmap

    • current and upcoming projects

      Short-time construction works with no effect on the trackmap are not listed here.

    • Stadtkrone Ost

      Bau eines Mittel-Hochbahnsteigs
      Vorplanung Baubeginn: 2025 | proposed inauguration: 2027

    • Voßkuhle

      Bau eines Mittel-Hochbahnsteigs
      Vorplanung Baubeginn: 2025 | proposed inauguration: 2027

    • U44

      Verlängerung der U44 ab der Haltestelle Westfalenhütte bis zum Logostikzentrum an der Warmbreitbandstraße.
      Vorplanung Baubeginn: 2025 | proposed inauguration: noch offen
      drawn on the trackmap

    • Lübkestraße

      Bau eines Mittel-Hochbahnsteigs
      Vorplanung Baubeginn: 2026 | proposed inauguration: 2028

    • Max-Eyth-Straße

      Bau eines Mittel-Hochbahnsteigs
      Vorplanung Baubeginn: 2026 | proposed inauguration: 2028

    • Kohlgartenstraße

      Bau von Seiten-Hochbahnsteigen
      Vorplanung Baubeginn: 2028 | proposed inauguration: 2029

    profile

    track gauge:
    		1435 mm
    electrification (overhead wiring):
    		750 VDC
    network, total length (2012):
    		73,6 km
    Rolling Stock (2012)
    trams (low floor):
    		47
    trams (high floor):
    		73
    historic trams:
    		10
    units needed for regular service
    - low floor:
    		23
    - high floor:
    		38
    network data suspension railway
    inauguration:
    		02.05.1984
    network, total length (2012):
    		3,1 km
    Rolling Stock (2012)
    suspension cars:
    		4
    units needed for regular service:
    		4
    partly estimated

    last updates

    • 07.06.2024
      Construction of second track in Asseln finished.
    • 07.06.2021
      Park railway and museum added.
    • 01.08.2020
      Proposed extension of line U44 added.
    • 17.06.2018
      The two track connections between Huckarde Bushod and Parsevalstraße were removed.
    • 12.08.2017
      Map completely revised and operation times added.
    • 12.11.2016
      Tunnel at Vahleweg in operation.

    Found a mistake?

    You've found a mistake in the map or you know a current change? Here you can directly advise it. This will be considered in the next update.

    Updates of the maps will be done about every month. You will get a message when the update is done.

    Contact form
