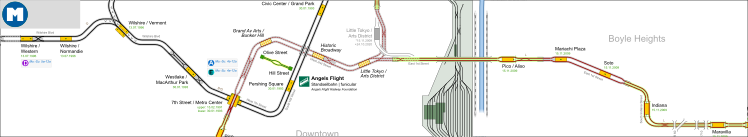

    Current track layout of the Los Angeles Metro Rail system

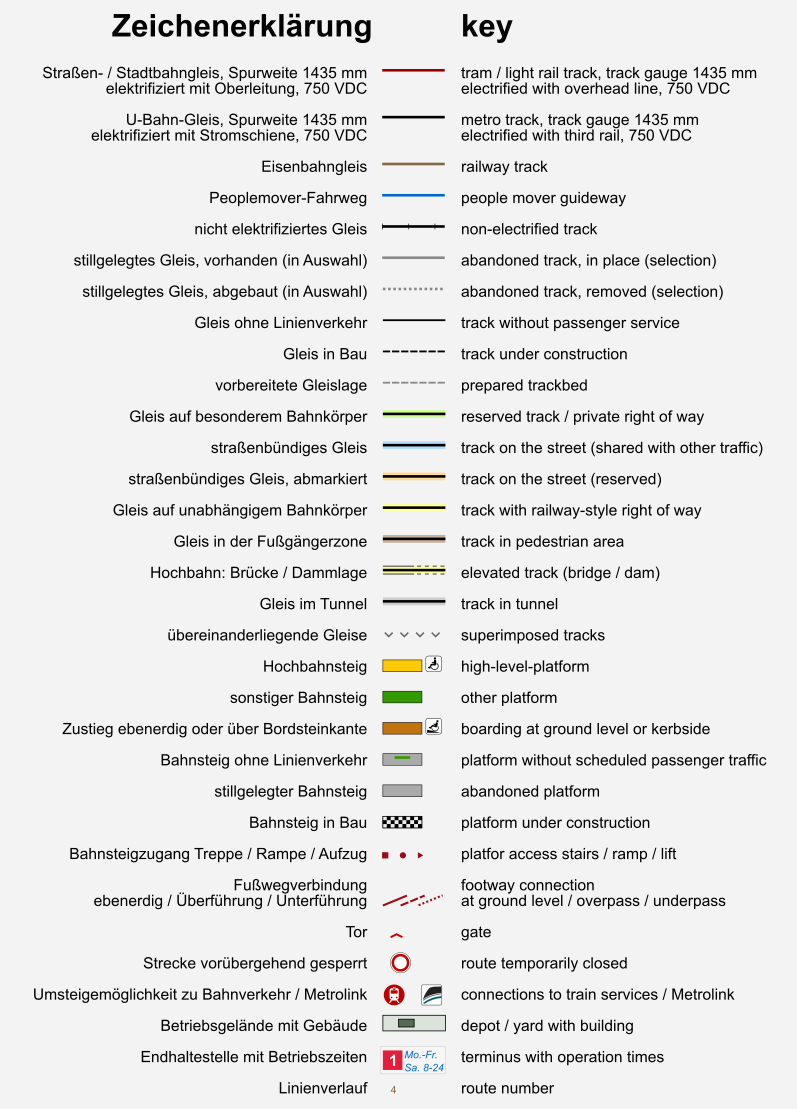

    show trackmap trackmap as pdf trackmap as svg key

  • share

  • Copyright

    These drawings are protected by copyright. A further use is possible by application of the Creative-Commons-Lizenz by-nc-sa.

  • Ausführliche Definitionen der im Gleisplan verwendeten Symbole und Darstellungen.

    • current and upcoming projects

      Short-time construction works with no effect on the trackmap are not listed here.

    • LAX / Metro Transit Center: Neue Haltestelle zum Umstieg in den People Mover zum Flughafen.
      in Bau | proposed inauguration: 2025

  • Crenshaw / LAX

    Neubaustrecke von Aviation / LAX nach Expo / Crenshaw mit neun Haltestellen.
    drawn on the trackmap | website

  • Gold Line Foothill Extension

    Neubaustrecke von der bisherigen Endhaltestelle APU / Citrus College bis Montclair mit sechs neuen Haltestellen.
    in Bau | proposed inauguration: 2025
    drawn on the trackmap | website

  • Purple Line Extension

    Neubaustrecke von der bisherigen Endhaltestelle Wilshire / Western bis Westwood / VA Hospital mit sieben Tunnelhaltestellen.
    drawn on the trackmap | website

    • Section 1: Wilshire / La Brea – Wilshire / La Cienega
      in Bau | proposed inauguration: 2025

    • Section 2: Wilshire / Rodeo - Century City / Constellation
      in Bau | proposed inauguration: 2026

    • Section 3: Westwood / UCLA – Westwood / VA Hospital
      in Bau | proposed inauguration: 2027

  • East San Fernando Valley Transit Corridor

    Light Rail-Neubaustrecke von Van Nuys nach San Fernando.
    bauvorbereitende Maßnahmen | proposed inauguration: 2031
    drawn on the trackmap | website

  • LAX People Mover

    Neubau des automatisierten People Movers am Flughafen.
    in Bau | proposed inauguration: Januar 2026
    drawn on the trackmap | website

    • profile

    inauguration:
    		14.07.1990
    track gauge:
    		1435 mm
    overhead wiring / 3rd rail:
    		750 VDC
    network, total length:
    		~ 169 km
    stops:
    		93

    last updates

    • 17.12.2024
      New stop Aviation / Century inaugurated, airport people mover added.
    • 26.07.2023
      Regional Connector: New tunnel through the city center inaugurated.
    • 07.03.2021
      New trackmap: Los Angeles Metro Rail
